JAALI LOADER

    Your Name*

    Your Phone*

    Your Email*

    Quantity

    Address*

    Description

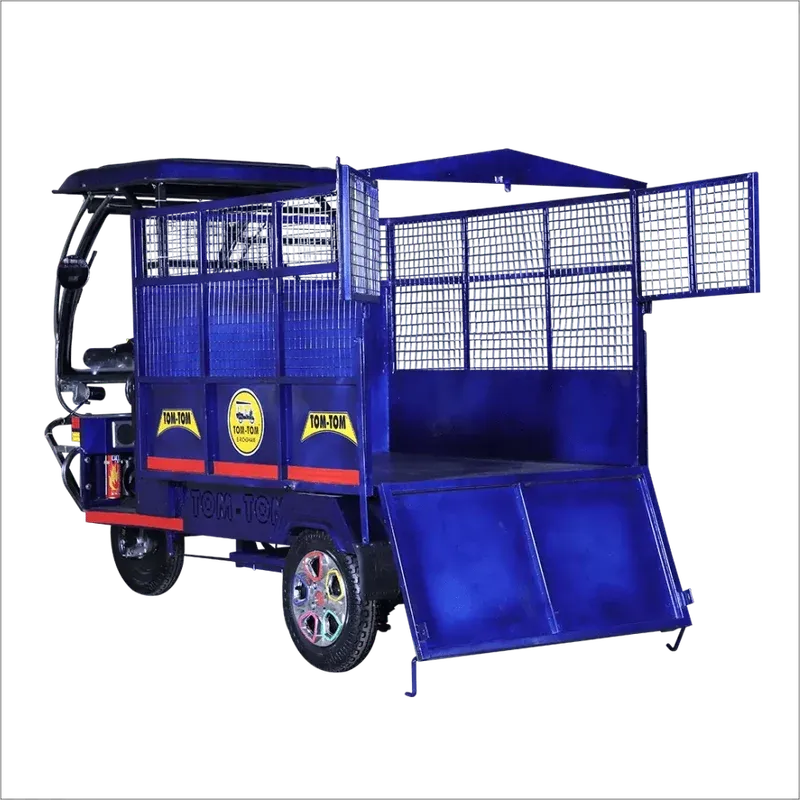

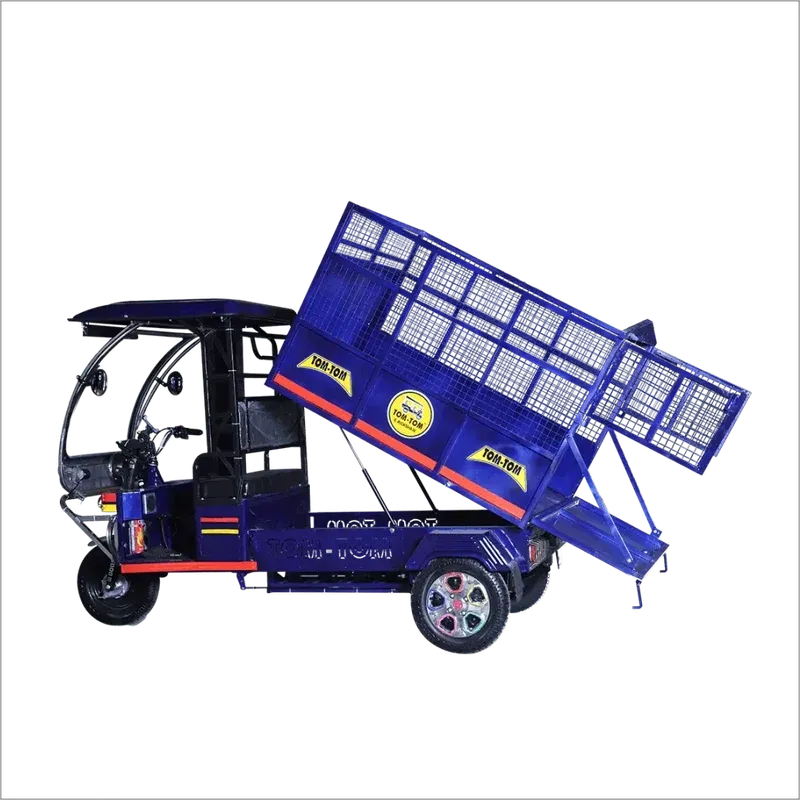

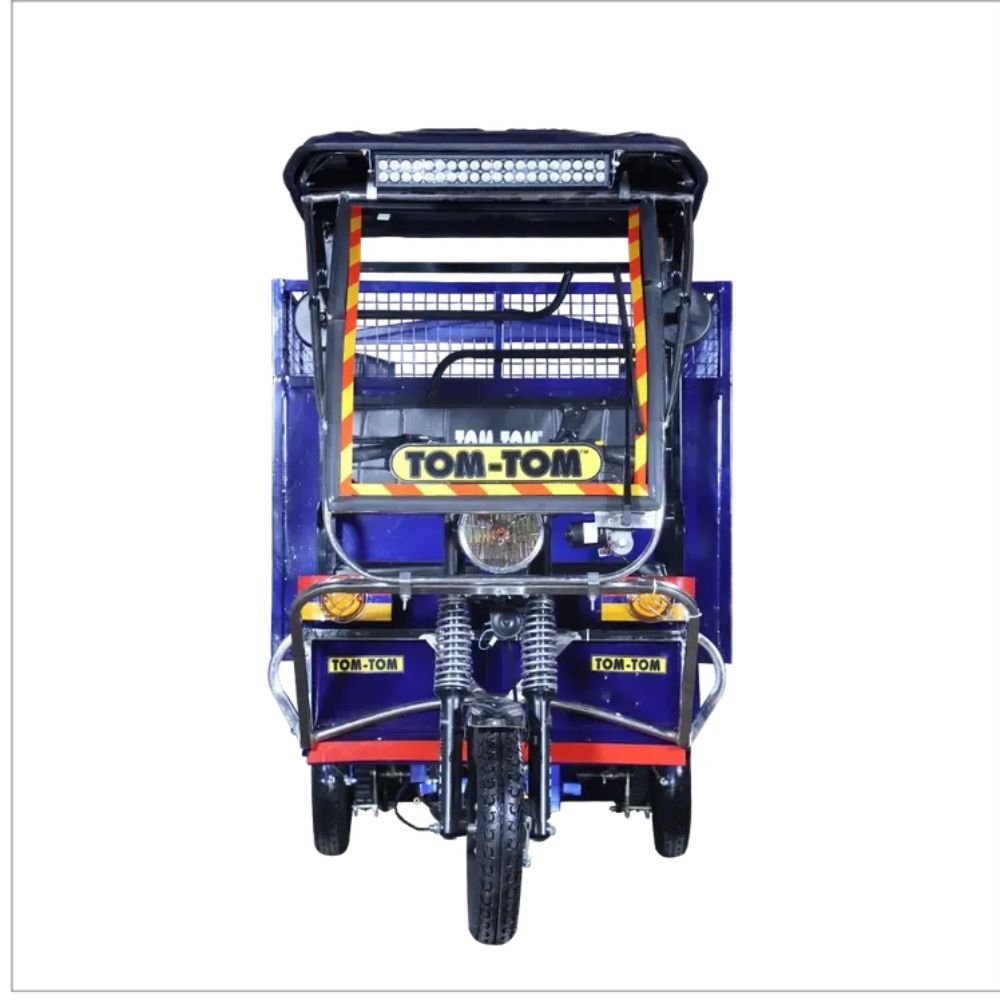

    The Jaali Loader E-Rickshaw is a heavy-duty electric cargo vehicle designed for efficient goods transportation in urban and rural areas. Its strong metal cage (jaali) structure provides extra safety and support for carrying bulk materials.

    Built with high-quality components and a powerful motor, this loader ensures smooth performance, better load capacity, and long operational life. It is an eco-friendly and cost-effective solution for daily commercial transport needs.

    key Features

    • Strong jaali (cage) body for secure load carrying
    • High load capacity for commercial use
    • Durable chassis with robust build quality
    • Smooth electric drive with low noise
    • Energy-efficient battery system
    • Heavy-duty suspension for rough usage
    • Easy handling and stable performance
    • Low maintenance and operating cost

    Applications

    • Goods transport in markets and shops
    • Delivery of vegetables, fruits & groceries
    • Warehouse and factory material movement
    • Construction material transport (light loads)
    • Rural and small business logistics
    • E-commerce and local delivery services

    Specification

    Capacity

    Seating Capacity: Driver +1 Passenger

    Load Capacity: 1000 KG Approx.

    Brakes

    Front: Lever Operated, Drum

    Rear: Brake Paddle Operated, Drum

    Parking: Mechanical Hand Lever Operated

    Battery

    Tyre: Lead Acids

    Capacity: 130/135/145/150/160

    Tyre Size

    Front: 3-12 / 90-90-12 / 3.75-12

    Front: 3-12 / 90-90-12 / 3.75-12

    Overall Dimensions

    Length: 2970 MM

    Width: 985 MM

    Height: 1730 MM

    Wheel Base: 2100 MM Ground Clearance: 200 MM

    Performance

    Maximum Gradability: ≤ 10 Turning Radius: 2.4 MTR

    Speed: ≤ KMPH

    Suspension

    Front: Telescopic Hydraulic Shockers

    Rear: Double Movement Leaf Spring with Hydraulic Shockers

    Controller

    Capacity: 65A,

    Voltage: 48volt / 60volt(optional)
