Cultivator

    Your Name*

    Your Phone*

    Your Email*

    Quantity

    Address*

    Description

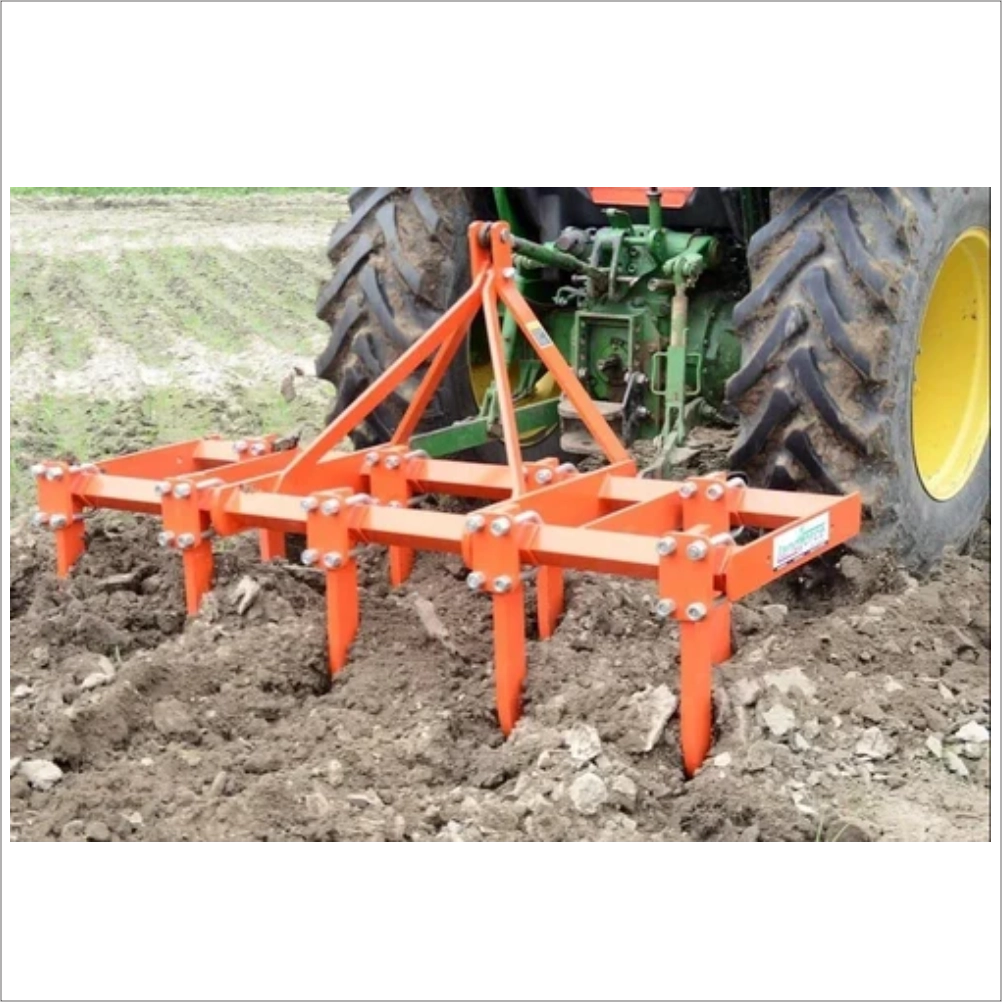

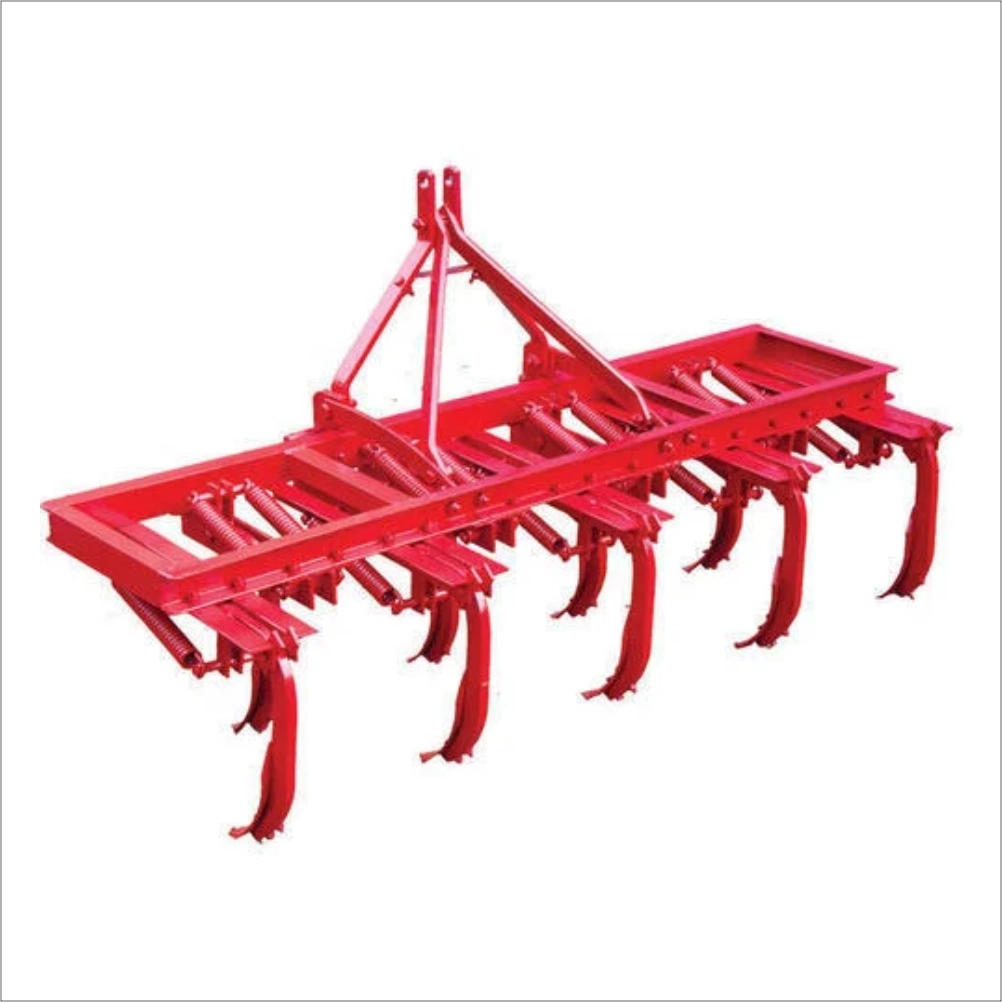

    The NAMOTECH Cultivator is a robust agricultural implement designed for effective soil preparation, especially in hard and compact soil conditions. It performs deep tillage up to 7–9 inches, breaking soil clods and improving aeration for better root development and crop growth.

    Equipped with adjustable tynes, the cultivator ensures precise and uniform soil working, allowing farmers to customize operations based on field requirements. Its heavy-duty reinforced frame and improved bracket design provide excellent strength, durability, and ease of adjustment.

    Built for reliable performance and low maintenance, this cultivator is ideal for modern farming practices, helping increase efficiency and reduce operational costs.

    Key Features

    • Deep tillage capability up to 7–9 inches
    • Adjustable tynes for precise soil operation
    • Heavy-duty reinforced frame for durability
    • Strong brackets for easy adjustment and stability
    • Efficient soil breaking and aeration
    • Suitable for hard and compact soils
    • Low maintenance and long service life
    • Uniform working depth across the field
    • Easy attachment with tractor (3-point linkage)
    • Improves soil structure for better crop yield

    Applications

    • Soil preparation before sowing
    • Breaking hard soil and clods
    • Weed control and inter-cultivation
    • Improving soil aeration and moisture retention
    • Suitable for various crops and soil types
    • Ideal for modern mechanized farming

    Specification

    Specification 9-Tyne (Standard) 11-Tyne (Heavy Duty)
    Power Required 35–45 HP 45–60 HP
    Working Width 1800–2000 mm (Approx. 6 ft) 2300–2500 mm (Approx. 8 ft)
    Working Depth 175–230 mm (7–9 inches) 200–250 mm (8–10 inches)
    Approx. Weight 225–300 kg 320–450 kg
    Tyne Spacing ~230 mm (9 inches) ~230 mm (9 inches)
    • Key Component Specifications:
    • Mouldboard: 8 mm Hardened Steel
    • Plough Share: 10–14 mm Durable Steel
    • Main Frame: Heavy-Duty Structure
    • Bar Point: Forged & Replaceable
    • Safety: Shear Bolt Protection
