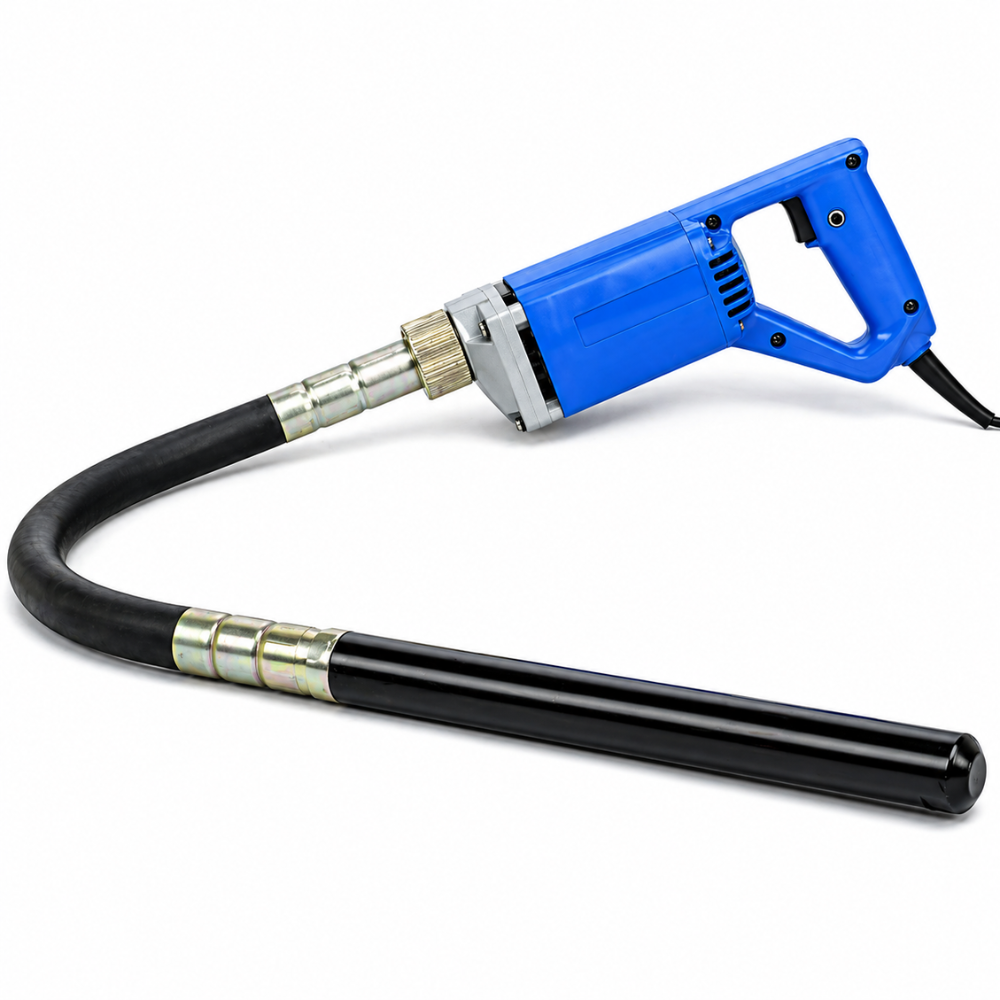

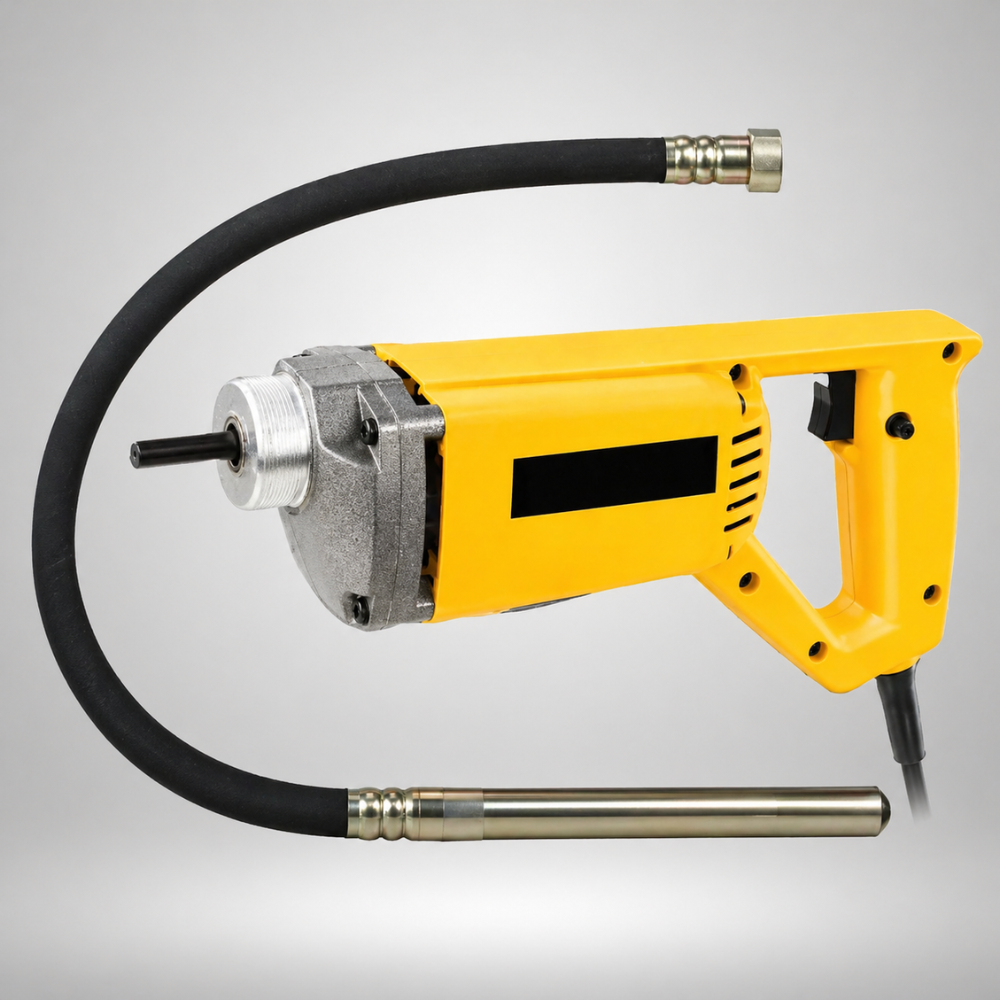

Concrete Vibrator

Description

A concrete vibrator is an essential construction tool used to remove air bubbles from freshly poured concrete, ensuring proper compaction and strength. It helps achieve a smooth, dense, and durable finish by evenly distributing the concrete mix. These machines are available in electric, petrol, and diesel variants, making them suitable for different site conditions. Their efficient vibration mechanism improves structural integrity and reduces the chances of cracks or weak spots.

Key Features

High vibration frequency for effective air removal

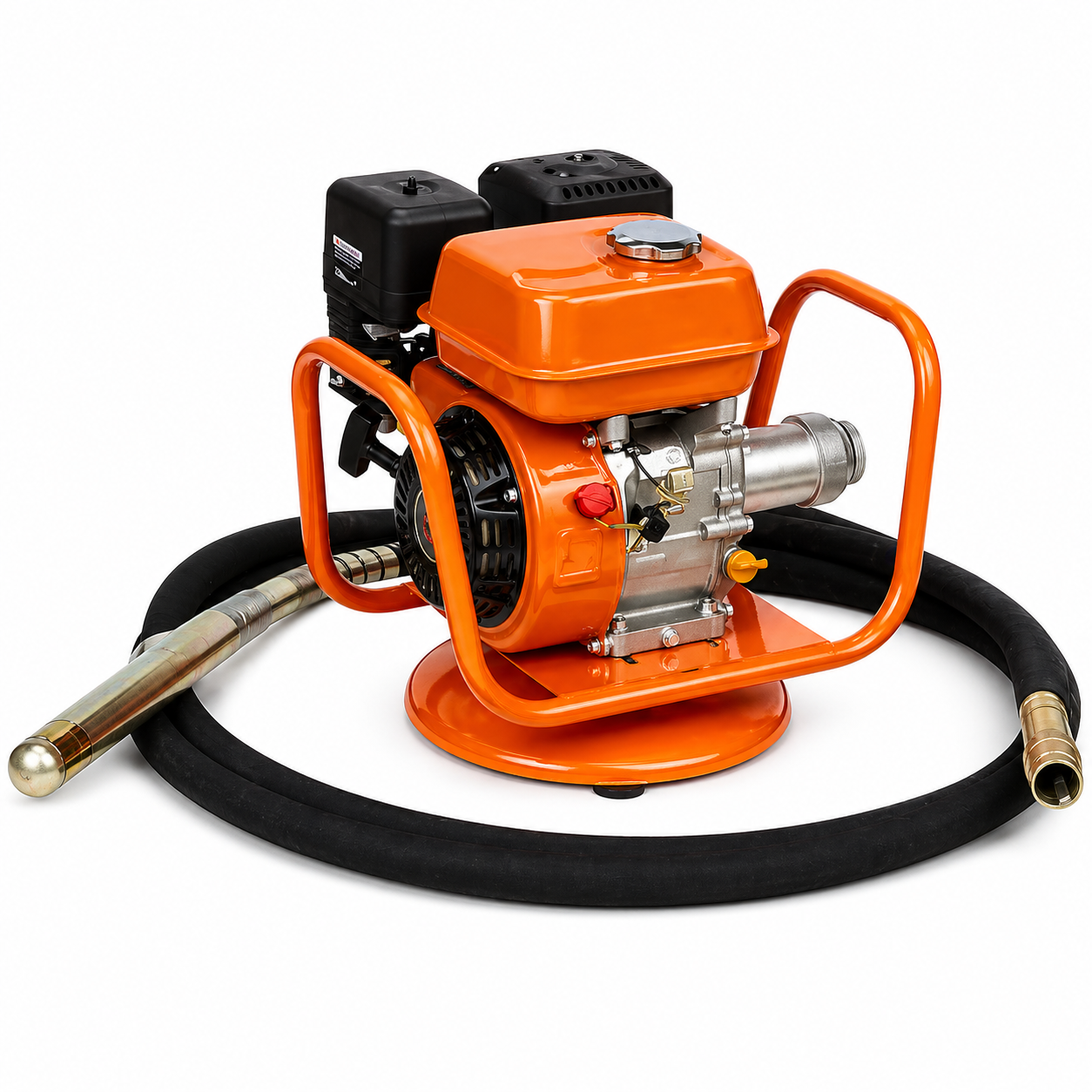

Available in electric, petrol, and diesel options
Flexible shaft for easy handling in tight spaces
Durable motor with long operational life
Lightweight and portable design
Easy to operate and low maintenance

Applications

Concrete slabs, floors, and foundations
Columns, beams, and RCC structures
Road construction and bridge work
Precast concrete products
Small to large construction projects
Industrial and residential building work

Specification

Concrete vibrator specifications focus on the machine’s ability to consolidate concrete by removing air voids. These tools are primarily specified by their vibration frequency, power source, and the physical dimensions of the “needle” or head.

Key Technical Specifications: The performance of a vibrator is determined by its reach and the force of its vibrations.

Vibration Frequency: Standard range is 3,000 to 6,000 RPM (cycles per minute), though high-frequency models can reach 12,000 to 15,000 RPM.
Needle/Poker Diameter: The head size must be chosen based on reinforcement spacing.
- 25–35 mm: Ideal for thin slabs and tight rebar.
- 40–60 mm: Standard for beams and columns.
- 75–100 mm: Heavy-duty use for large footings or bridge structures.
Flexible Shaft Length: Typical lengths are 1.5m to 6m.
Amplitude: Usually between 0.8 mm and 1.5 mm depending on the head weight and eccentric force.
